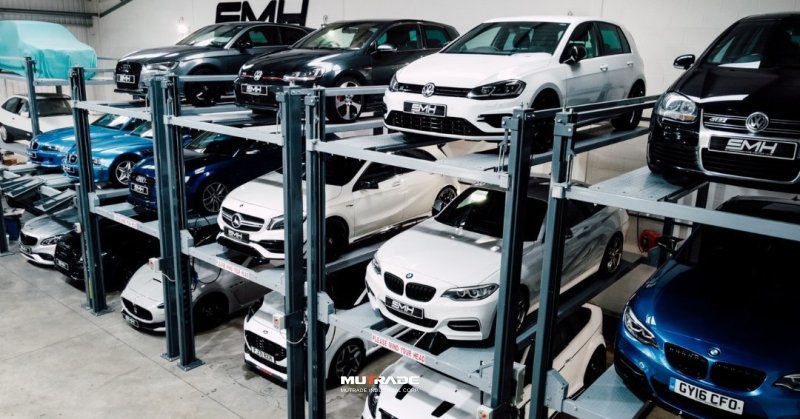

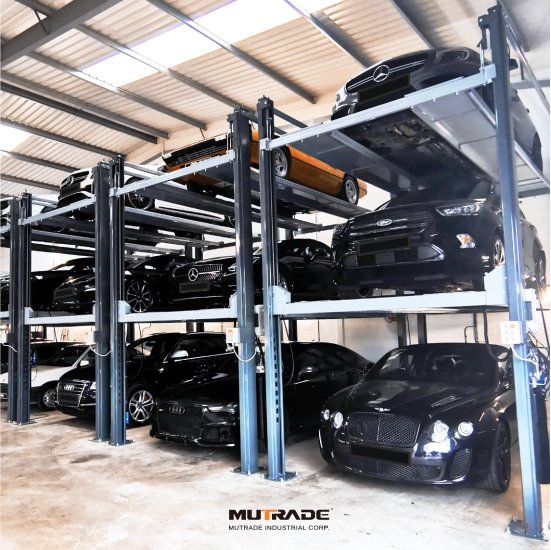

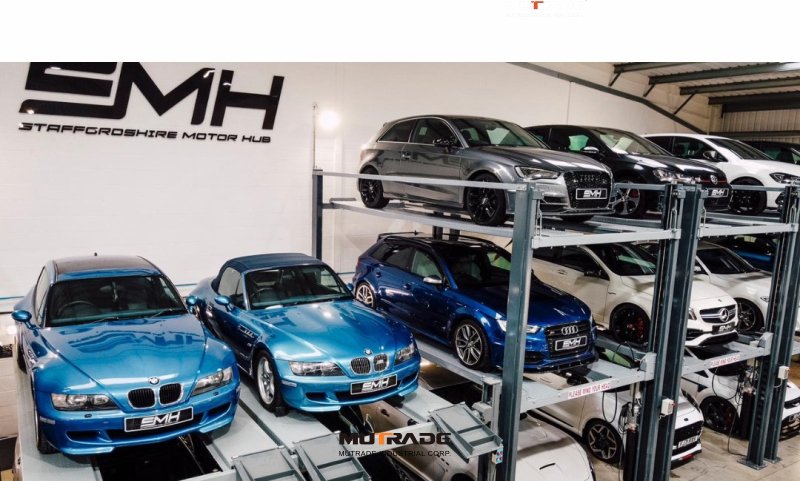

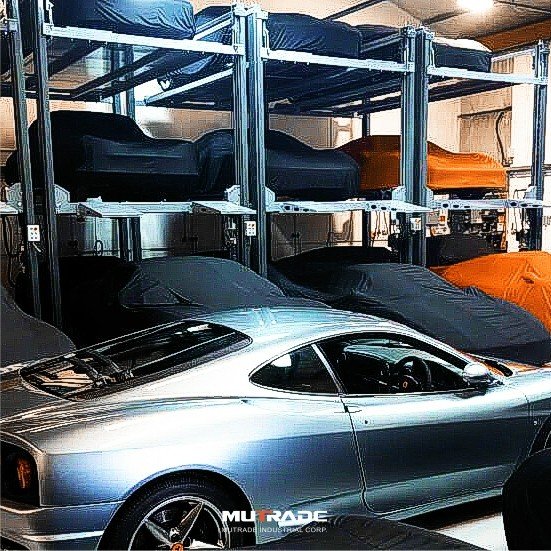

As the demand for parking space continues to grow, efficient and innovative solutions are essential for maximizing the utility of available areas. Our recent collaboration with a Specialists in buying and selling sports and prestige cars, car detailing, vehicle repairs and servicing exemplifies how advanced parking systems can be employed to expand internal vehicle storage significantly. The club enhanced its parking capacity by installing eight units of our cutting-edge three-floor version of the FPP-3E, a versatile system that offers a practical, eco-friendly alternative to the HP3130 model.
Overview of the 3-Floor FPP-3E Parking System
The three-level parking system, akin to the triple stacker HP-3130 model, is designed to serve as an eco- stacker parking solution, offering a practical and sustainable way to accommodate more vehicles within a limited footprint. Each platform in the system operates vertically, powered by a hidden, robust hydraulic cylinder that utilizes wire ropes to ensure smooth and reliable movement. This innovative design ensures smooth and reliable operation while maintaining a sleek and unobtrusive appearance.
The newly installed systems are designed to optimize space utilization by accommodating three cars vertically on each platform. The platforms move exclusively in a vertical direction, powered by a concealed hydraulic cylinder system equipped with robust wire ropes, ensuring smooth and reliable operation.
Key Features of the Three-Floor FPP-3E System
Our three-floor FPP-3E system is designed to provide a reliable and space-saving solution for indoor parking needs. Below are the primary features and
benefits of this system:
Vertical Platform Movement: The platforms in this system move solely in the vertical direction, powered by a concealed, high-strength hydraulic
cylinder equipped with wire ropes. This design ensures smooth operation while maintaining a clean aesthetic by hiding the hydraulic components.
Commercial Grade Durability: The FPP-3E is built to withstand rigorous use in commercial environments, ensuring long-term reliability.
Overlap Platform Design: This design allows for efficient use of vertical space, enabling the stacking of three vehicles in the footprint of a single
parking spot.
Safety Features: The system includes a dynamic anti-fall lock, dust and oil dripping trays, steel rope breaking detection, a mechanical lock release
on the top platform, and an automatic lock release for the middle platform. An emergency stop button and an up & down key switch add extra
layers of safety.
Flexible Capacity:
Ground Floor: Unlimited capacity
Second Floor: 2500kg capacity
Third Floor: 2500kg capacity
Dimensions:
Entrance Width: 2340mm
Second Floor Driven Width: 1970mm
Third Floor Driven Width: 1896mm
Clear Height: 2100mm on each floor
Maximizing Building Height Usage
One of the standout features of the FPP-3E system is its ability to maximize the usage of a building's height. The system accommodates three vehicle heights (customization may be required based on vehicle size), with the total height including 135mm plus 120mm, and safety clearances for each level. The result is an optimized use of vertical space that significantly increases parking capacity without requiring additional ground space.
Conclusion
The installation of these eight FPP-3E units has allowed the automotive club to triple its vehicle storage capacity, making the most of their available indoor space. With robust safety features, efficient operation, and a design that priorit
